Welcome to our four-part series of articles about rating curves

Introduction

A rating curve typically correlates water surface elevations with discharge rates. That sounds like a straight-forward process, but rating curve development is fraught with complexity and uncertainty. Water surface elevations are relatively simple to measure using high water marks, photographs, staff gauges, or stage recorders; the corresponding discharge rates, on the other hand, can prove to be much more enigmatic because flow measurements have to account for what is going on in the invisible realm below the surface of the water. In this series of articles, we’ll highlight some best practices and potential pitfalls associated with the “scientific art” of plotting and refining rating curves using measurements, equations, and/or models.

Webinar

In this Australian Water School webinar, we introduce the underlying concepts and address some of the uncertainties surrounding the development of rating curves:

Here are some of the resources highlighted in the webinar:

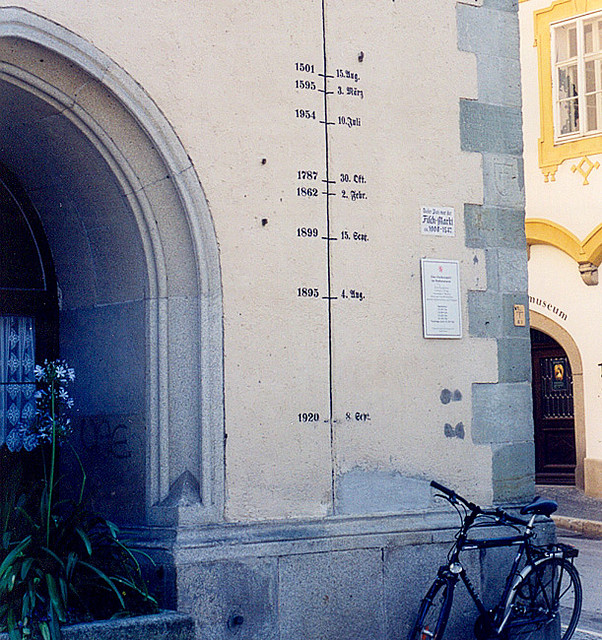

To set up some of the complexities associated with rating curves, take a look at the high water marks painted on the Rathaus in the “three-river” city of Passau, Germany in this 2002 photo:

[Photo credit: Roger Wollstadt]

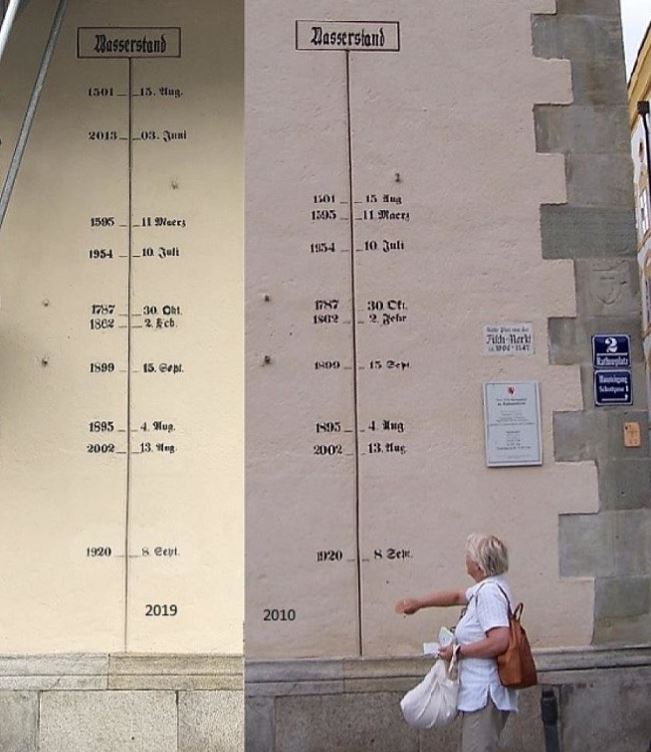

When the 2013 floods far exceeded any previously recorded historical levels, city historians went back to the records, adjusted the heights, and corrected the painted levels:

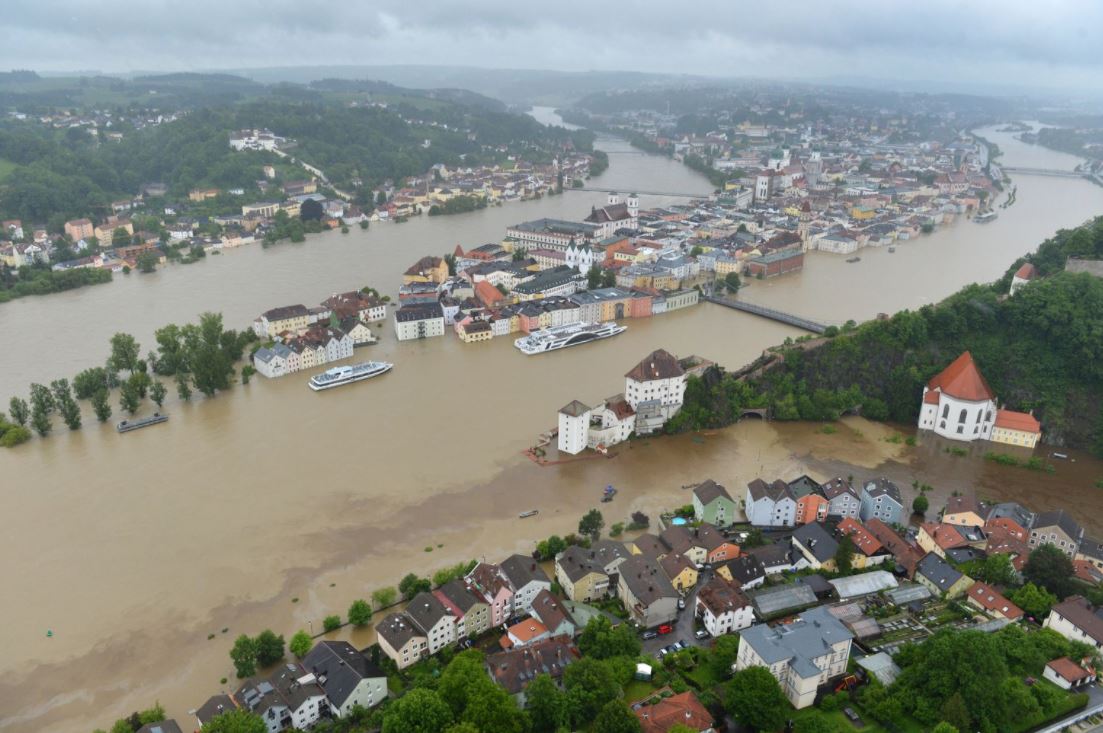

Media reports that initially called the flooding the “worst ever” began to call it the “worst in 500 years” once the 1501 high water mark was corrected. But we have to be very careful with this sort of statement. If we listed the river discharge next to the flood levels, would the flow rates likewise be in ascending order from bottom to top? If so, we might be looking at a smooth rating curve that could be representative of this location. In reality, however, the 2013 flood levels may well have resulted from far lower discharge rates than previous events, possibly exacerbated by geomorphological changes, subsequent development, or other variations in the river system. If any of the flow rates are indeed out of order, we would need to look at a family of rating curves in Passau.

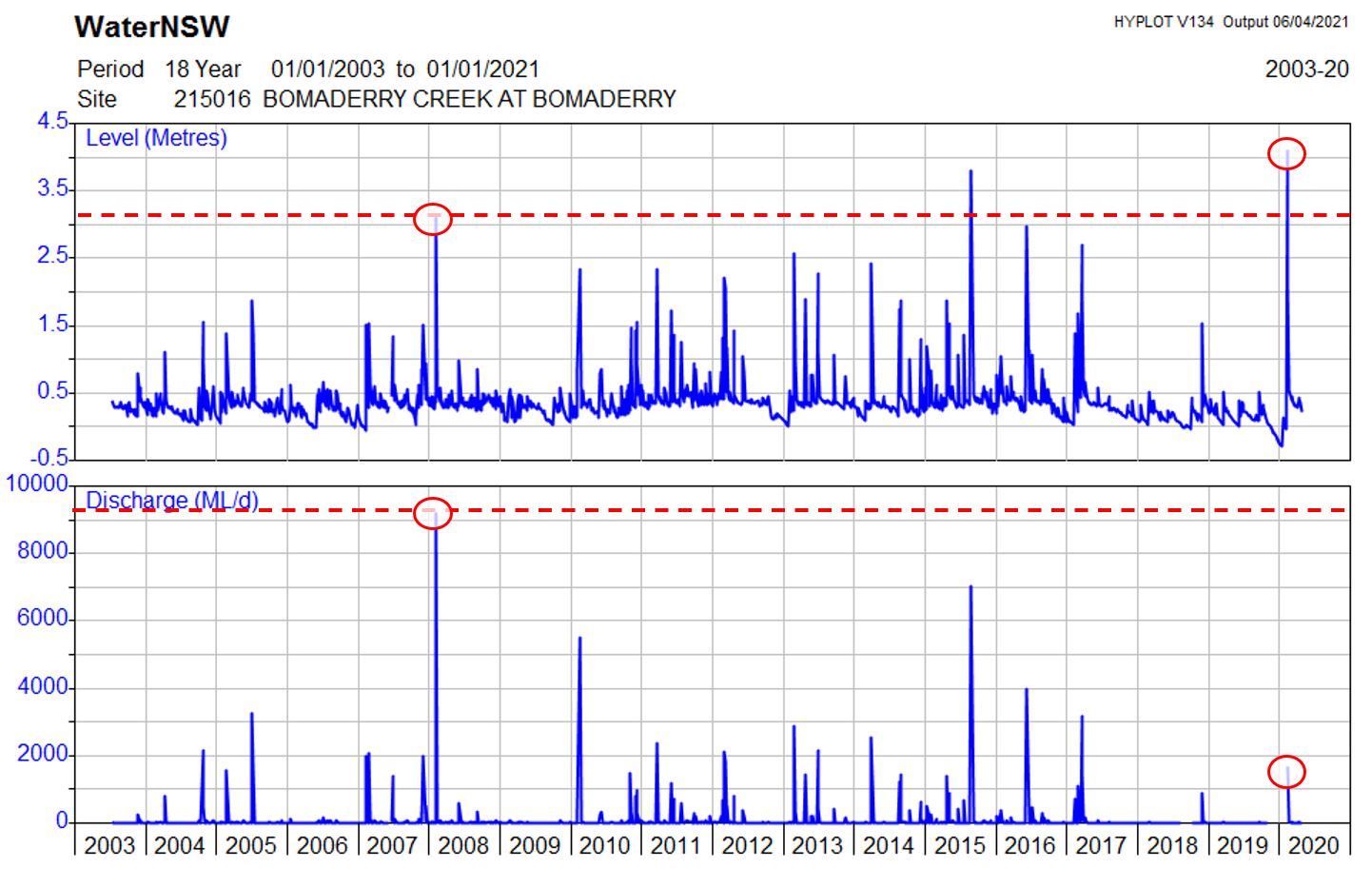

Here is an example of coincident flow and stage records that – if correct – indicate a change in the adopted rating curve over time. The highest stage ever recorded (in 2020) was accompanied by a fairly minor flow event, while the highest flow ever recorded (in 2008) was accompanied by a stage level that has been exceeded several times since. Whether it is due to tidal action, wind forces, confluence areas, debris blockage, or other factors, there are certainly valid cases where relationships between flow and stage change over time. Could this have happened in Passau?

So how would you go about determining historical discharge rates in order to assess which flood event in Passau truly was the worst in terms of total discharge? Because we can’t retroactively measure flow, we would need to create hydraulic models that result in each of the recorded flood levels. For the model results to be meaningful, however, each event would need its own geometric data, complete with an accurate historical survey or terrain file reflecting the bathymetry of the river channel at the time along with floodplain development, vegetation, and other time-varying factors that can affect the hydraulic roughness.

[And if we take it back even further to the chain of precipitation events across three different basins that came together to generate these floods in Passau, the spatial and temporal distribution of the rainfall and catchment characteristics will have a tremendous impact on the resulting runoff; the precipitation depths that resulted in these floods could likewise vary across the board, showing no apparent correlation to the order of events painted on the old Rathaus!]

In short, the idea of simply turning stage into discharge by means of a single, smooth curve sounds very appealing, but there is a lot more to the process!
